ASTM D1831 Grease Roll Stability Tester Lubricating Grease Roller Stability Testing Equipment

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	AI
Certificación:	ISO9001
Número de modelo:	AIC-1831

Cantidad de orden mínima:	1 juego
Precio:	USD$3,000~5,000
Detalles de empaquetado:	caja de madera contrachapada
Tiempo de entrega:	30 días
Condiciones de pago:	T/T, Unión Occidental, L/C
Capacidad de la fuente:	20 juegos por mes

Mejor precio Contactar ahora

Estándar de prueba:	Las demás partidas	Idioma:	inglés
Servicio OEM:	Disponible	Fuente de alimentación:	AC220V el ±10% 50Hz
Solicitud:	Pruebas de grasa lubricante	Mostrar:	Digital
Velocidad de rotación:	155~180r/minuto	Consumo de energía:	1000W
Modo de calefacción:	Serpentín de calentamiento	Rango de control de temperatura:	21~38℃
Método que mide el tiempo:	Temporizador digital	Posición de trabajo:	2 unidades
Resaltar:	ASTM D1831 grease stability tester , lubricating grease roller tester , grease roll stability testing equipment

I. ASTM D1831 Lubricating Grease Roll Stability Tester

When operating this Roll Stability Test Apparatus,using certain quantity sample working on roll test machine under room temperature,after 2 hours,measure the penetration of lubricating grease before and after test.This apparatus is suitable to determine the changes in the consistency of lubricating grease when worked in the roll stability test apparatus,and judge the mechanical shear stability of lubricating grease.

II.Main technical characteristics

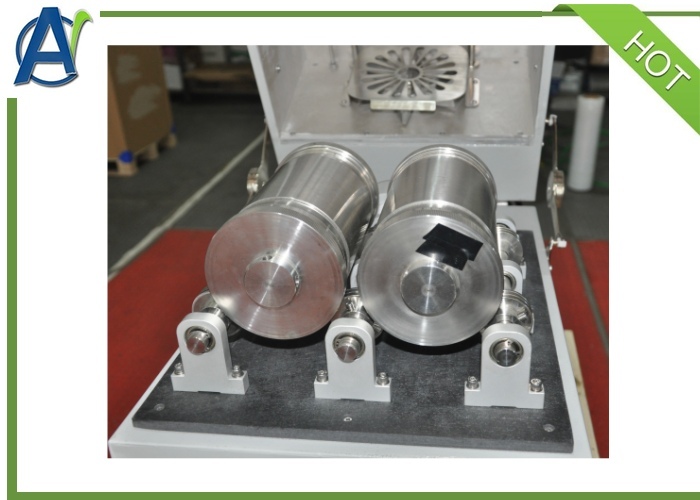

1. The Roll Stability Test Apparatus provides Stainless steel roller Φ90×180mm 5kg.

2.. Idle pulley has locating ring to control the normal working of roller.

3. Driving motor is installed to keep rotating speed 155~180r/min.

4. Roller is drove by belt.

5. Mic-computer temperature controller,digital display,accuracy ±5ºC,Pt 100 sensor.

6. Digital timer can record working time and it has buzzer siren.

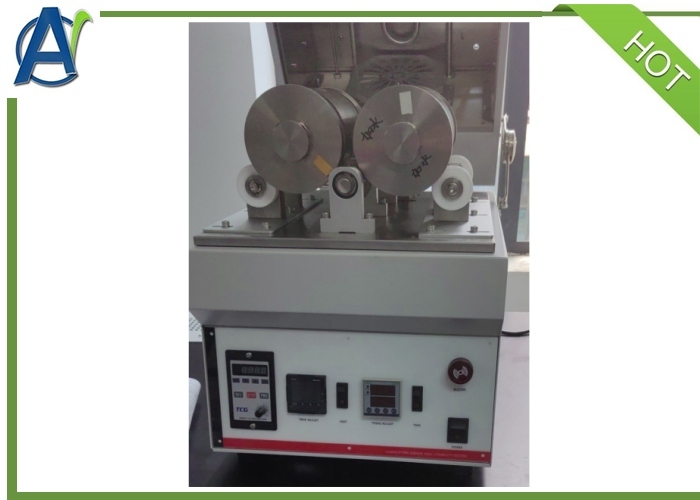

7. The Roll Stability Test Instrument can test two rollers simultaneously.

8. There is a hole of thermometer on the cover,and temperature can be corrected by it.

III. Main technical parameters and index

Test standard	ASTM D1831, SH/T0122
Power supply	AC220V /50HZ
Rotating speed of motor	155~180r/min
Heating mode	heating coil
Temperature controlling range	21~38ºC
Working Positions	2 Units
Total Power	1000W
Timing	Digital timer

FAQ

What's the delivery time?

About 30days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
