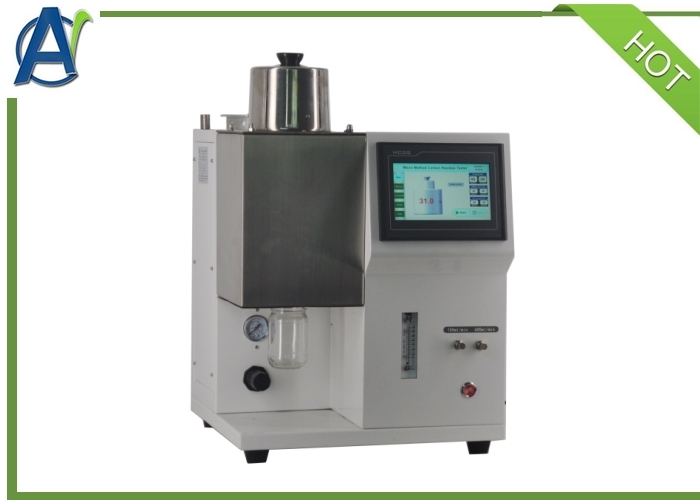

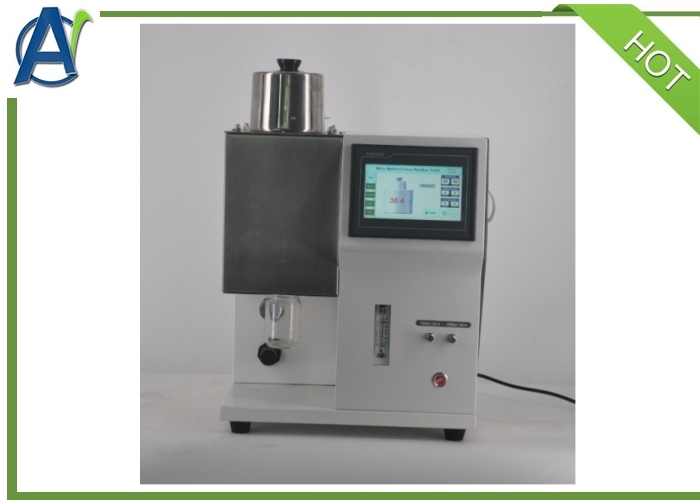

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)
ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method)
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: Advanced Instruments
Certificación: ISO9001
Número de modelo: AIC-4530
Cantidad de orden mínima: 1 juego
Precio: US$5,000-10,000/set
Detalles de empaquetado: Caja de madera contrachapada
Tiempo de entrega: 30 días
Condiciones de pago: T/T, L/C, D/P
Capacidad de la fuente: 50 juegos por mes
Mejor precio Contactar ahora
estándar de prueba: ASTM D4530; ISO 10370 Garantía: 1 año completo
Trandmark: Instrumentos avanzados Servicio OEM: Disponible
idioma: Inglés Método de prueba: Micrométodo
Precisión del control de temperatura: 520 ± 2 ℃ Puestos de trabajo: 12 muestras
Modo de calefacción: Calefacción por varilla calefactora Modo de conexión: Conector rápido de acero inoxidable importado
Rango de presión: 0 kPa (0 kg/cm²) ~392 kPa (4 kg/cm²) Rango de flujo: 100ml ~1000ml/min
Botella de recogida de líquidos residuales: Botella de vidrio de 200 ml con interfaz roscada. Fuente de alimentación: AC 220 V, 50 Hz
potencia total: 2000W Dimensiones del instrumento: 550 mm × 500 mm × 590 mm
Peso neto: 35kg
Resaltar:

ASTM D4530 micro carbon residue tester

,

ISO 10370 carbon residue test apparatus

,

automatic micro method oil test equipment

General Introduction

This Micro Carbon Residue Detection Equipment is designed and made as per GB/T17144-1997 Standard Test Method for Carbon Residue of Petroleum Products-Micromethod. It is suitable to determine the amount of carbon residue of petroleum products.

Features
  1. 1. 5-inch TFT color LCD display with screen resolution of 800×480;
  2. 2. Chinese-language operating interface with touchscreen control for easy and efficient operation;
  3. 3. Automatic control of temperature rise and gas flow, with real-time display of test progress;
  4. 4. Adopts an embedded operating system for stable and reliable performance;
  5. 5. High-temperature safety protection;
  6. 6. Editable input of sample tube and sample mass;
  7. 7. Automatic calculation of carbon residue value;
  8. 8. Stores up to 100 sets of historical data for easy query;
  9. 9. Historical data can be queried by date;
  10. 10. Coking chamber inlet orifice diameter: 1mm (12 in total).

ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) 0

Technical Specifications and Parameters
  1.  Applicable Standards: GB/T 17144, ASTM D4530, ISO 10370, DIN 51551
  2.  Temperature Control Accuracy: 520±2℃
  3. Working Positions: 12 samples
  4. Heating Mode: Heating rod heating, easy for maintenance
  5. Connection Mode: Imported stainless steel quick connector, leak-proof
  6.  Pressure Range: 0 kPa (0 kg/cm²) ~392 kPa (4 kg/cm²)
  7.  Flow Range: 100 ml ~1000 ml/min
  8. Waste Liquid Collection Bottle: 200 ml glass bottle with threaded interface
  9. Power Supply: AC 220 V, 50 Hz
  10. Total Power: 2000 W
  11. Instrument Dimensions: 550×500×590 mm
  12. Net Weight: 35 KG
ASTM D4530 and ISO 10370 Automatic Micro Carbon Residue Tester (Carbon Residue Test Apparatus, Micro Method) 1
FAQ
1.What's the delivery time?
About 30days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
