EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing

EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing
EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: Advanced Instruments
Certificación: EN50305-2018
Número de modelo: AIC-22190
Cantidad de orden mínima: 1 juego
Precio: $3000~$10000
Detalles de empaquetado: Caja de madera contrachapada
Tiempo de entrega: 60DÍAS
Condiciones de pago: LC, T/T, D/P
Capacidad de la fuente: 20 juegos/mes
Mejor precio Contactar ahora
Después del servicio: Respuesta en 12 Horas 12 Meses Garantía: 1 año completo
Paquete de transporte: Caja de madera contrachapada estándar de prueba: EN50305-2018
Fuente de alimentación: CA 220 V, 50/60 Hz, 2 A. El golpe efectivo: Alrededor de 400 mm
Velocidad de aceleración: 1 noche/día Diámetro del pasador de acero: Φ0.45mm
Sensor: Célula de carga tipo S Transcell de EE. UU. Voltaje de prueba: 24V
Sistema de alimentación: Servomotor XINJE 400W Fuerza máxima de ensayo: 200N (opcional para usuarios)
Resaltar:

EN50305-2018

,

Cables Dynamic Cut-through Tester

,

Dynamic Cut-through Test Machine

General Introduction
1.1 Equipment overview

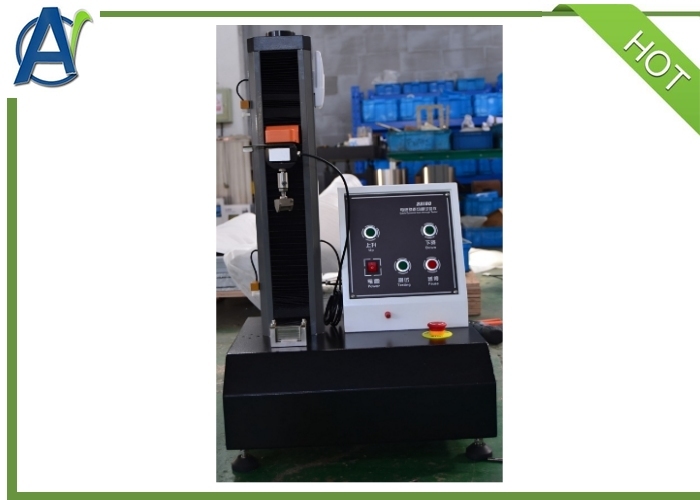

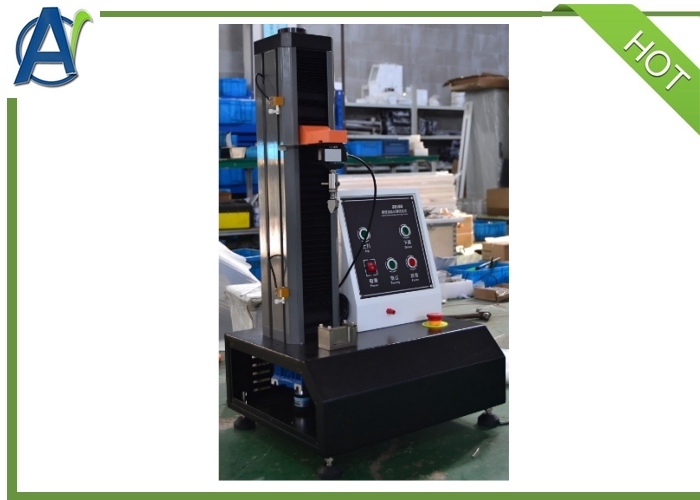

Railway Rolling Stock Cables Dynamic Cut-through Tester is used to test the insulation strength of railway locomotive and vehicle cables. Squeeze the surface of the finished cable with a steel needle with a diameter of 0.45mm, increasing the pressure at a constant rate until the insulation or sheath is cut through. The instrument automatically stops when the steel needle contacts the internal conductor or metal shield and records the maximum force value of the process.

1.2 Related standards
  • EN50305-2018

EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing 0

Technical parameters
  • Effective stroke: about 400mm.
  • Acceleration speed: 1N/S.
  • Steel pin diameter: Φ0.45mm.
  • Sensor: U.S. Transcell S-type load cell.
  • Power system: XINJE 400W servo motor.
  • Ball screw: Taiwan TBI2505 ball screw, high transmission precision, grinding process, good finish, good precision retention, long service life. The nut has good craftsmanship and high load capacity.
  • Rotary bearing: Japan NSK deep groove ball bearing.
  • Deceleration device: Outex precision vacuum cast aluminium reducer, speed ratio 1:15.
  • Guide bar: made of two φ25 bearing steel by surface hardening, the surface hardness can reach HRC58 or above.
  • Dustproof device: adopting Taiwan stacking dustproof cover to protect the screw and prevent dust from entering.
  • Body surface treatment: the use of U.S. DuPont powder, electrostatic spray paint process, high temperature 200 ℃ curing to ensure that the colour does not fade.
  • Control: computer + special software.
  • Profile: aluminium alloy one-time extrusion, high strength, small deformation, corrosion resistance.
  • Safety devices: overload shutdown function, up and down travel limiter, specimen cut-through shutdown function.
Technical specifications
  • Overall Dimensions: 500mm*420mm*850mm
  • Power supply: AC 220V, 50/60Hz, 2A
EN50305-2018 Standard Railway Cable Tester with 400mm Effective Stroke and 0.45mm Steel Pin Diameter for Dynamic Cut-through Testing 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
