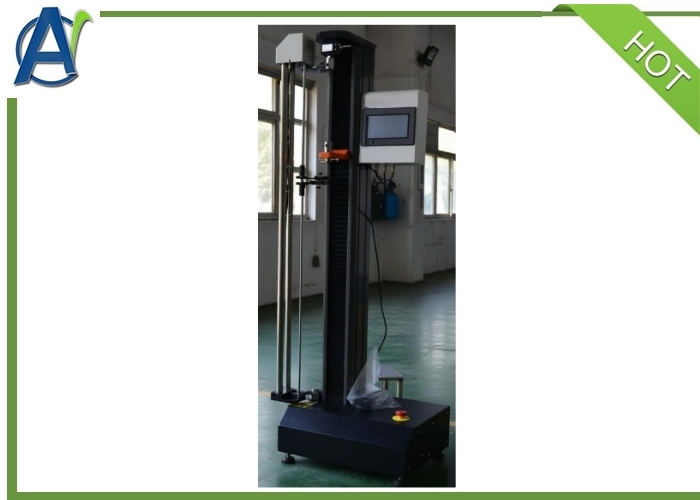

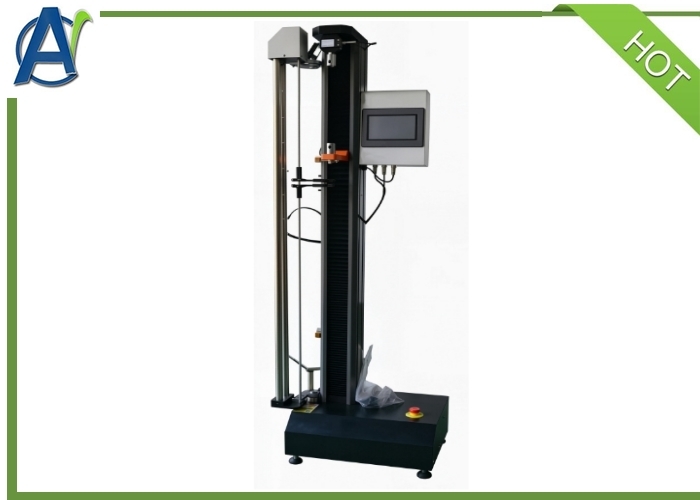

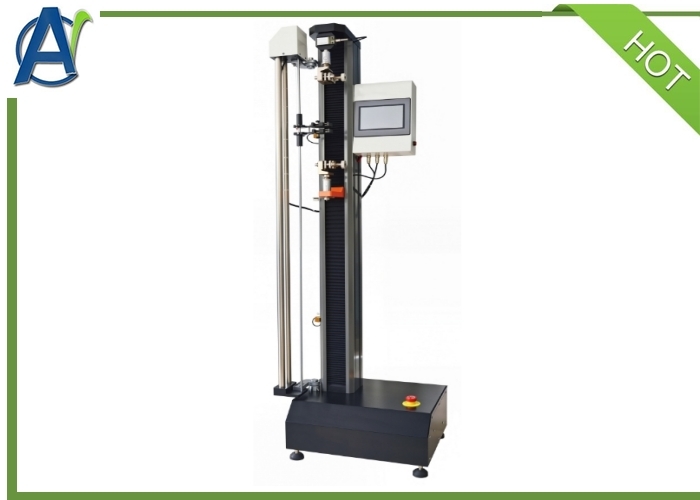

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke
ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: Advanced Instruments
Certificación: ISO6892-1:2009;ISO7500-1:2004
Número de modelo: AIC-21006B
Cantidad de orden mínima: 1 juego
Precio: $5000~$10000
Detalles de empaquetado: Caja de madera contrachapada
Tiempo de entrega: 60DÍAS
Condiciones de pago: LC, T/T, D/P
Capacidad de la fuente: 20 juegos/mes
Mejor precio Contactar ahora
Después del servicio: Respuesta en 12 Horas 12 Meses Garantía: 1 año completo
Paquete de transporte: Caja de madera contrachapada estándar de prueba: ISO6892-1:2009;ISO7500-1:2004
solicitud: Pruebas universales, pruebas de plástico, pruebas de tracción. Fuente de alimentación: CA 220 V, 50/60 Hz, 2 A.
El golpe efectivo: alrededor de 800 mm Resolución de desplazamiento: 0,01 mm
Material de la prueba: Metal, acero, cable metálico, caucho, plástico Fuerza máxima de ensayo: 5N,100N, 500N,1000N,2000N(Opcional para usuarios)
Error relativo del valor de la fuerza de prueba: ≤ ± 1% Rango de velocidad de prueba: Se trata de un sistema de control de la velocidad.
Resaltar:

ISO6892

,

ISO7500

,

LCD Tensile Test Machine

General Introduction
1.1 Equipment overview

LCD digital display tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. LCD digital display tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance.

1.2 Related standards
  • ISO6892-1:2009
  • ISO7500-1:2004

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke 0

Technical parameters
  • Max test force: 50N,100N,500N,1000N,2000N (optional for users)
  • Effective stroke: about 800mm
  • Test force value relative error: ≤±1%
  • Test speed range: 0~500mm/min
  • Displacement resolution: 0.01mm
  • Sensor: American Transcell S type sensor
  • Power system: XINJIE 400W servo motor
  • Clamps: Wave tooth type non-self-tightening clamps, 45 # steel processed, hard chrome plated surface
  • Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation
  • Large deformation resolution: 0.1%
  • Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
  • Guide rod bearing: NSK ball linear bearing imported from Japan
  • Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 15
  • Guide rod: made of two φ25 bearing steels with surface hardening, the surface hardness can reach above HRC58
  • Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
  • Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
  • Display method: LCD
  • Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance
  • Safety device: overload stop function, up and down travel limiter, sample break stop function
Technical specifications
  • Overall Dimensions: 500mm*420mm*1650mm
  • Power supply: AC 220V, 50/60Hz, 2A
ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
