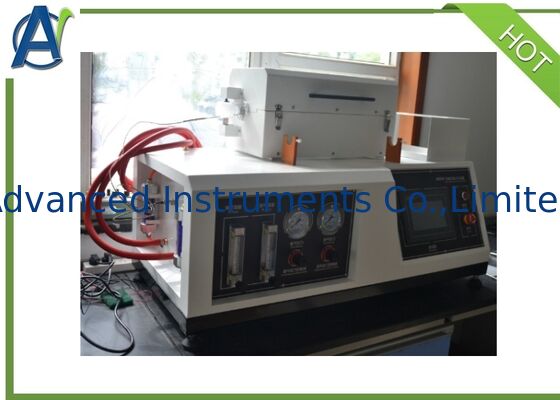

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: Advanced Instruments
Certificación: IEC 60811-4-1:2004 ; ISO 6964
Número de modelo: AIC-52032
Cantidad de orden mínima: 1 juego
Precio: $5000~$10000
Detalles de empaquetado: Caja de madera contrachapada
Tiempo de entrega: 30 días
Condiciones de pago: LC, T/T, D/P
Capacidad de la fuente: 20 juegos/mes
Mejor precio Contactar ahora
Después del servicio: Respuesta en 12 Horas 12 Meses Garantía: 1 año completo
Paquete de transporte: Caja de madera contrachapada estándar de prueba: CEI 60811-4-1:2004; ISO 6964
gas: nitrógeno (contenido en oxígeno el <0.5%), oxígeno solicitud: Pruebas de cables y alambres
Color: Gris Operación: Automático
Tamaño de la cubierta metálica: 300mmx600mmx1175mm Fuente de alimentación: CA 220 V, 50/60 Hz, 16 A.
Quemador de explosión: potencia nominal 1kW Dispositivo de quema: encendido automático de alta tensión
fuente de aire: Propano y aire comprimido modo de control: Control de pantalla táctil
Volumen de la cámara de combustión: ≥ 1m³ Especificación: 600 mm × 450 mm × 750 mm
tubo de cuarzo: diámetro interior 30 mm, longitud total 450 mm; Lavado de botellas: 500ml, 2 piezas/juego
Barco en llamas: Tipo 77, 100 unidades/juego;
Resaltar:

IEC 60811-4-1:2004

,

ISO 6964

,

Carbon black Test Device

General Introduction
1.1 Equipment overview

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

1.2 Related standards
  • ISO 6964;
  • IEC 60811-4-1:2004
  • ASTM D1603

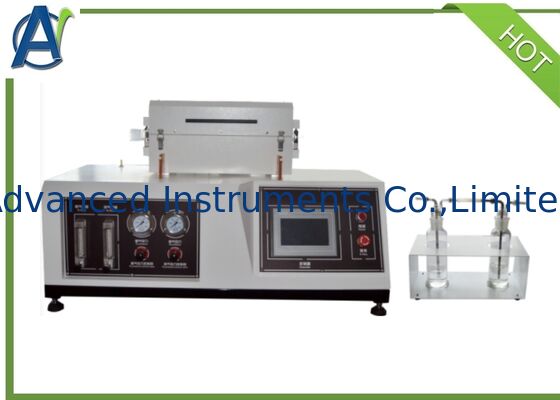

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 0

Technical parameters
  1. Quartz tube: inner diameter 30mm, total length 600mm;
  2. Heating furnace: room temperature~600℃, 500mm length;
  3. Temperature sensor: K type, room temperature~1300℃;
  4. Bottle washing: 500ml, 2 pcs/set;
  5. Burning boat: Type 77, 100 pcs/set;
  6. Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
  7. Flow meter: 0.3~3L/min.
Technical specifications
  1. Overall Dimensions: 600mm*450mm*770mm
  2. Power supply: AC 220V, 50/60Hz, 16A

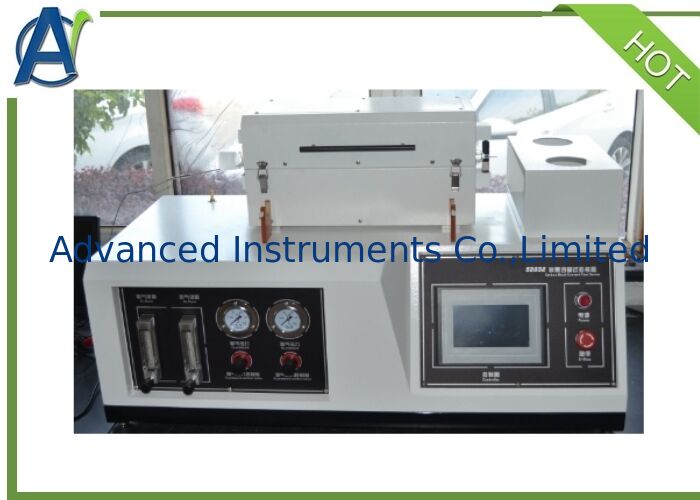

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 1
FAQ
  1. What's the delivery time?
    About 30days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
